Hi-Fi authenticity in this compact unit systems from the renowned Yamaha PianoCraft range. An aluminium front panel and Burr-Brown DACs reflect a commitment to sound quality for all audio sources.Read More
Bluetooth® wireless audio streaming
Hi-res audio (192 kHz / 24-bit FLAC / WAV) via USB
Authentic Hi-Fi design and tuning
FM tuner
Subwoofer pre-out
Connect wirelessly via Bluetooth for quick and simple audio playback from smartphones and other Bluetooth devices. Whether listening to your favourite music streaming services on your phone or watching videos on your tablet, get the most out of your sound by streaming it to your micro Hi-Fi system.
Playback of 192 kHz / 24-bit FLAC and WAV files via USB reflects the Hi-Fi origins of this system. This support offers listeners the ability to experience the best in Hi-Fi listening.
The PianoCraft series has for many years, embodied authentic Hi-Fi performance from a compact unit. Inheriting design philosophies from Yamaha Hi-Fi components ensure quality Hi-Fi performance from any PianoCraft product.

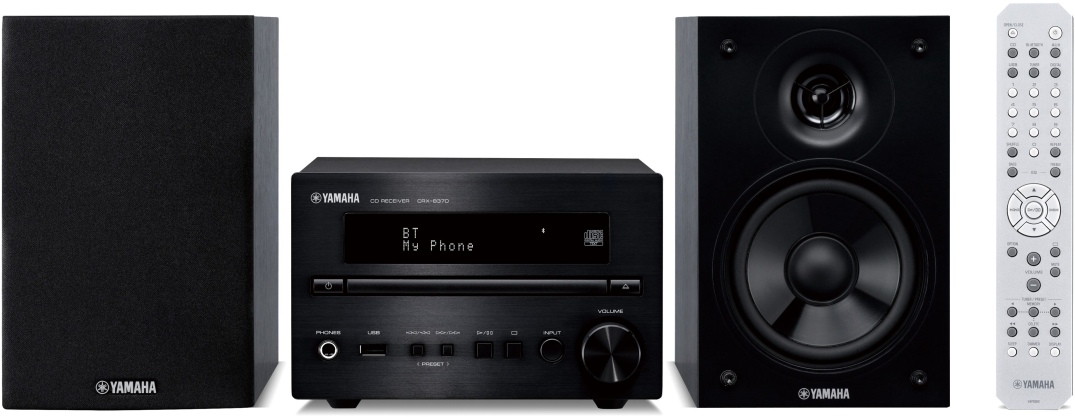

The MCR-B270 maintains the design image of Yamaha Hi-Fi components - presenting an extremely high-class, sophisticated appearance.
The centre unit has a front panel made of high-grade aluminium with a hairline finish that looks clean and elegant. Adding this stylish system to your room will enhance not just your listening but your home décor as well.
To prevent unwanted cabinet vibration, Yamaha developed an internal structure called VCCS (Vibration Control Cabinet Structure) that employs strategically placed pieces of a composite material providing excellent vibration isolation performance.
General Specs | |
| Color | Black |
| Bluetooth Version | 4.2 |
| Number of USB Ports | 1 |
| Bluetooth Capable | Yes |
| Color Finish Name | Black |
Center Unit | |
| Bluetooth Version/Profile | Ver. 4.2 / A2DP, AVRCP ; [Audio Codec] SBC, AAC |
| Bluetooth Maximum Communication Range | 10 m / 32.8 ft. 10 in. (without interference) |
| Disc Type | CD, CD-R, CD-RW (Audio CD, MP3, WMA) |
| USB | Yes |
| File Format | MP3, WMA, AAC, WAV(*1), FLAC(*1), AIFF(*1), ALAC(*2) --- (*1) 192 kHz / 24-bit; (*2) 48 kHz / 24-bit |
| Tuner | FM |
| Preset Memory | FM x 30 |
| Headphone Jack | Yes (6.3 mm) |
| Analog Audio Input | Yes (3.5 mm STEREO mini Jack × 1) |
| Digital Audio Input: Optical | Yes |
| Subwoofer output | Yes |
| Total Harmonic Distortion(CD to Sp Out, 20 Hz-20 kHz) | 0.05 % |
| Output Power/Channel (6 ohms, 1 kHz, 10% THD) | 20 W + 20 W |
| Standby Power Consumption | 0.3 W (Eco standby) / 1.3 W (Bluetooth® standby on) |
| Dimensions (W x H x D) | 180 x 118 x 322 mm; 7-1/8” x 4-5/8” x 12-5/8” |
| Weight | 2.7 kg; 5.9 lbs. |
Speaker System | |
| Woofer | 11 cm (4-3/8") cone woofer |
| Tweeter | 2.5 cm (1") dome tweeter |
| Input Power (Max/Nominal) | 30 W (Nominal) |
| Frequency Response | 60 Hz-30 kHz |
| Sensitivity | 84 dB / 2.83 V / 1 m |
| Crossover Frequency | 6 kHz |
| Impedance | 6 ohms |
| Dimensions (W x H x D) | 123 x 192 x 298 mm; 4-7/8” x 7-1/2” x 11-3/4” |
| Weight | 2.2 kg; 4.9 lbs. |
